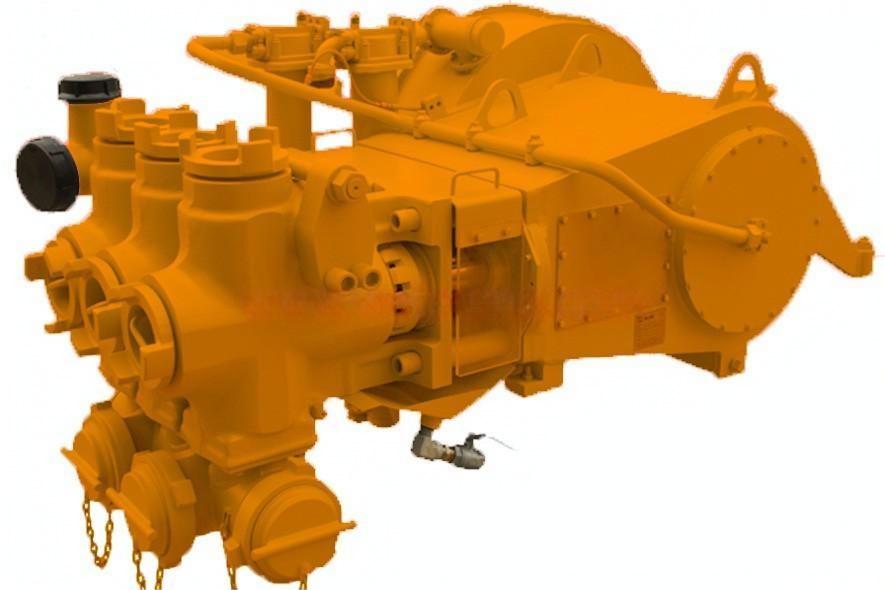

SN-HT400 horizontal single-acting three-cylinder plunger pump

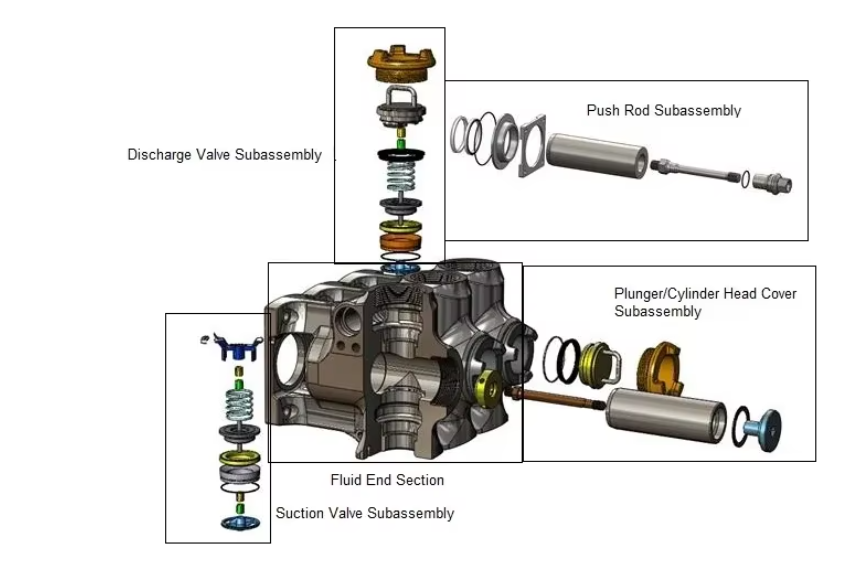

SN-HT400 horizontal single-acting three-cylinder plunger pump is mainly composed of power end, reducer box and hydraulic end. The hydraulic end is forged with high quality alloy steel as a whole and precisely machined by machining center as a whole, which can be configured with various plunger sizes. The pump has the advantages of high power, high pressure, easy maintenance, etc. It is the plunger pump of choice for high pressure cementing. 4-1/2", 4", 3-3/8" plungers are available.

Description
Inquiry

Main Technical Parameters

Product Model	SN-HT400
Max. Brake Power kW (BHP)	600BHP(447Kw)
Max. Connecting Rod Torque（Nm)	9782
Stroke (mm)	203.2（8″）
Max. Stroke	224rpm
Transmission Ratio	8.6:1
Length×Width×Height (mm)	1975X976X1156 mm
Weight kg（lbs）	2910kg（6402）

Main Performance Parameters

Pump Stroke (rpm)	32	70	128	171	244
Plunger Diameter Inch(mm)	Displacement GPM Pressure psi (L/min) (MPa)	Displacement GPM Pressure psi (L/min) (MPa)	Displacement GPM Pressure psi (L/min) (MPa)	Displacement GPM Pressure psi (L/min) (MPa)	Displacement GPM Pressure psi (L/min) (MPa)
3-3/8"(85.7)	30(104) 20000(138)	65(245) 14314(99)	119(450) 7789(54)	159(601) 5832(40)	227(860) 4078(28)
4"(101.6)	42(158) 14000(97)	91(344) 10190(70)	167(632) 5545(38)	223(844) 4152(29)	319(1207) 2903(20)
4-1/2"(114.3)	53(200) 11200(77)	115(435) 8051(56)	211(800) 4381(30)	282(1068) 3280(23)	404(1527) 2294(16)

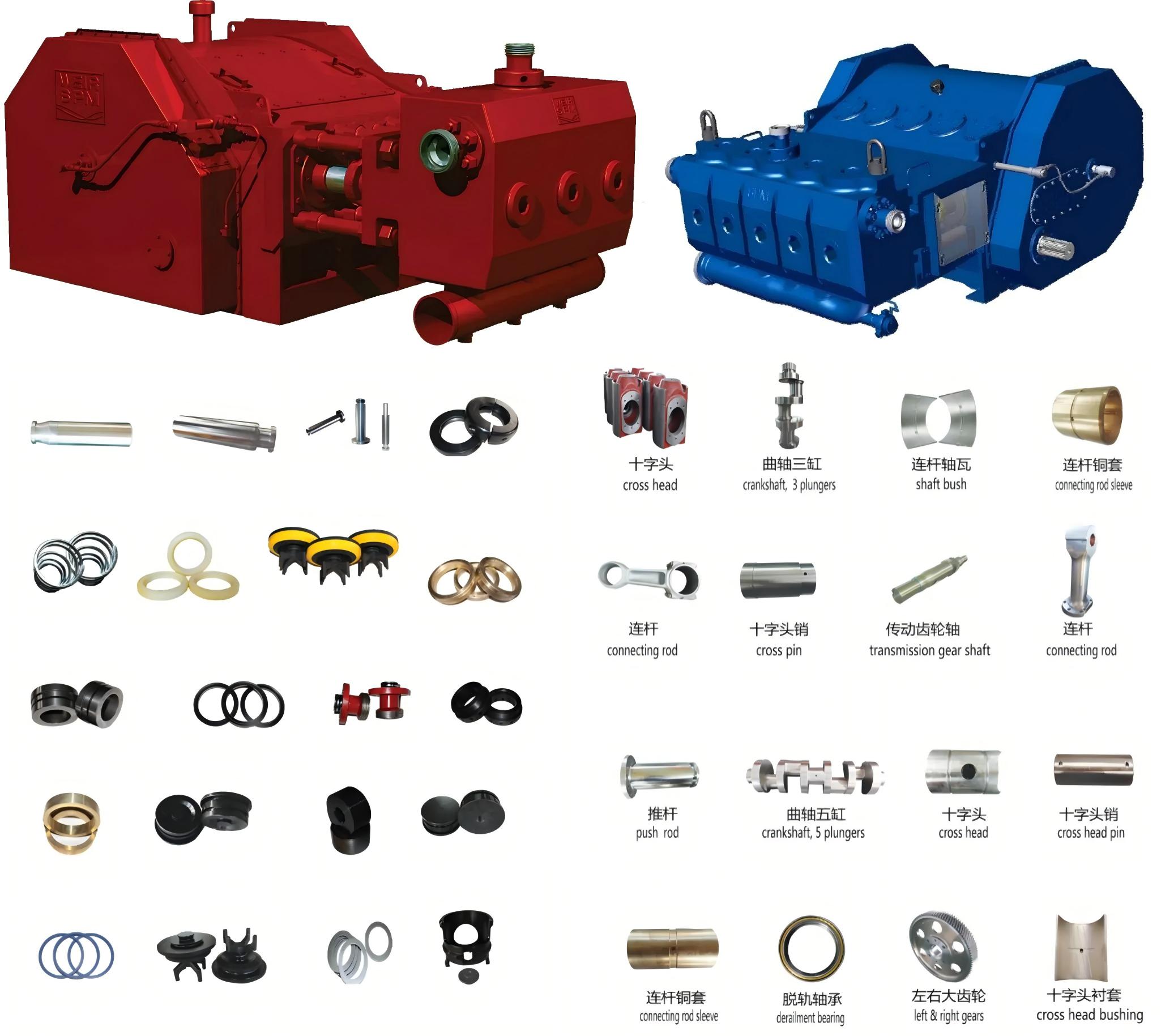

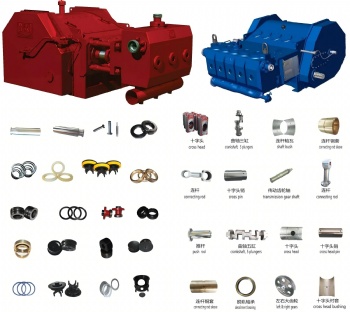

We can supply the Spare Parts for the Pump Models as follow:
SPM Triplex and Quintuplex Pumps:
TWS 600 ,TWS 2000, TWS 2250 , QWS1000 , QWS 2500, QWS 2800
Halliburton HT400 plunger pump
Serva TPA600 pump, TPA-400 plunger pump ,TPB-600 plunger pump.
GD-2500 Quintuplex Plunger Pump
