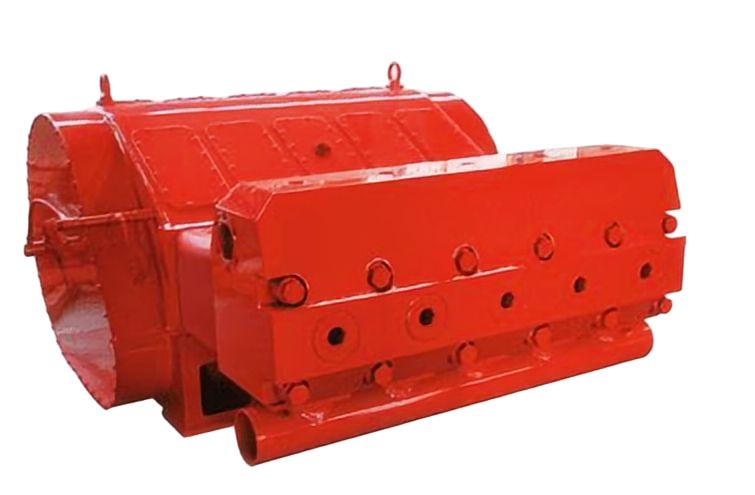

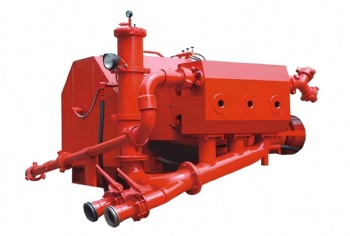

SN-QWS 2500 five-cylinder plunger pump

SN-QWS 2500 five-cylinder plunger pump is mainly used in fracturing, acidizing, cementing and sand control operations. It has the characteristics of large output power, high pressure and large displacement; the hydraulic end can choose a variety of plungers to meet the user's requirements for different pressures and displacements; the independent packing box is convenient to disassemble and easy to replace; the double helical gear vice transmission, the equipment is evenly stressed to improve the smooth operation of the large pump.

Description
Inquiry

Main Technical Parameters

Maximum brake power:	2500hp (1866kW)
Maximum load of connecting rod:	855kN(192325lbf)
Stroke:	203.2mm(8")
Max. stroke:	330rpm
Transmission ratio:	6.353:1
Dimension:	2199×1980×1113mm
Length X width X height:	(86.6"×78"×43.8")
Weight:	6760kg(14903lbs)

Main Performance Parameters

Operating Parameters	Pump stroke r/min
	115		150		200		250		330
Plunger Diameter	Displacement	Pressure	Displacement	Pressure	Displacement	Pressure	Displacement	Pressure	Displacement	Pressure
in(mm)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)
3-3/4"(95.25)	802(212)	120(17420)	1086(287)	92.6(13437)	1446(382)	69.6(10096)	1809(478)	55.6(8068)	2385(630)	42.2(6121)
4"(101.6)	912(241)	105.6(15315)	1234(326)	81.6(11830)	1643(434)	61.2(8886)	2055(543)	49(7102)	2710(716)	37.1(5386)
4-1/2"(114.3)	1154(305)	83.4(12100)	1563(413)	64.3(9338)	2082(550)	48.3(7012)	2604(688)	38.6(5605)	3437(908)	29.2(4247)
5"(127)	1427(377)	67.5(9800)	1930(510)	52.1(7562)	2574(680)	39.1(5671)	3217(850)	31.3(4537)	4247(1122)	23.7(3437)
