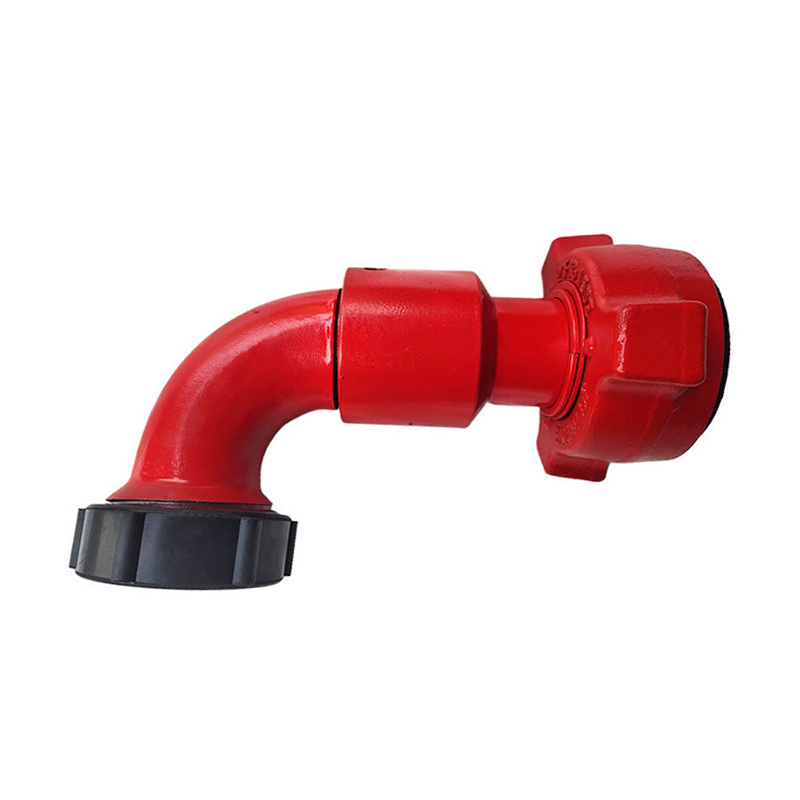

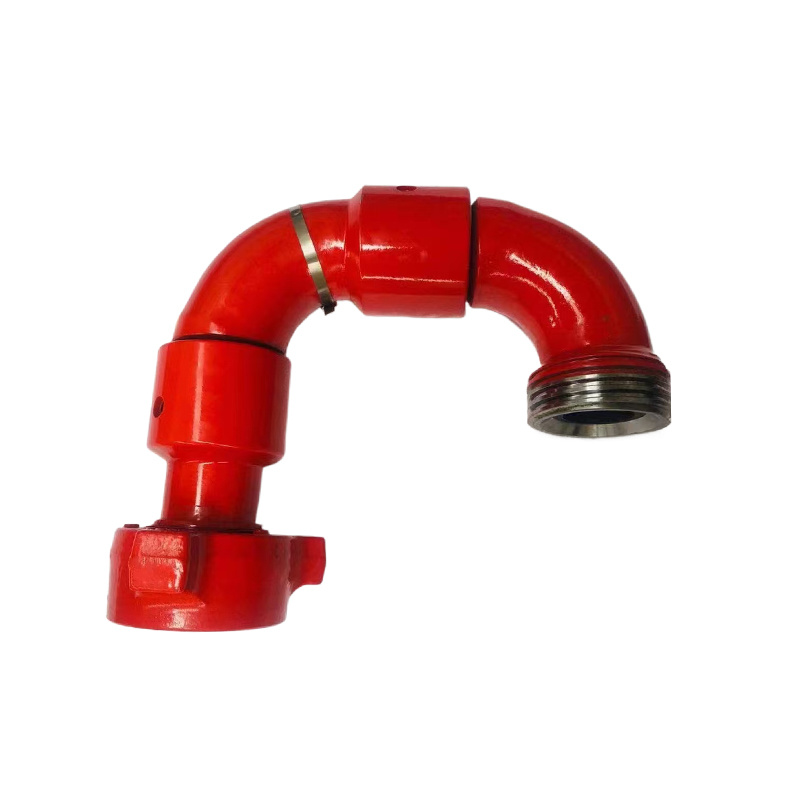

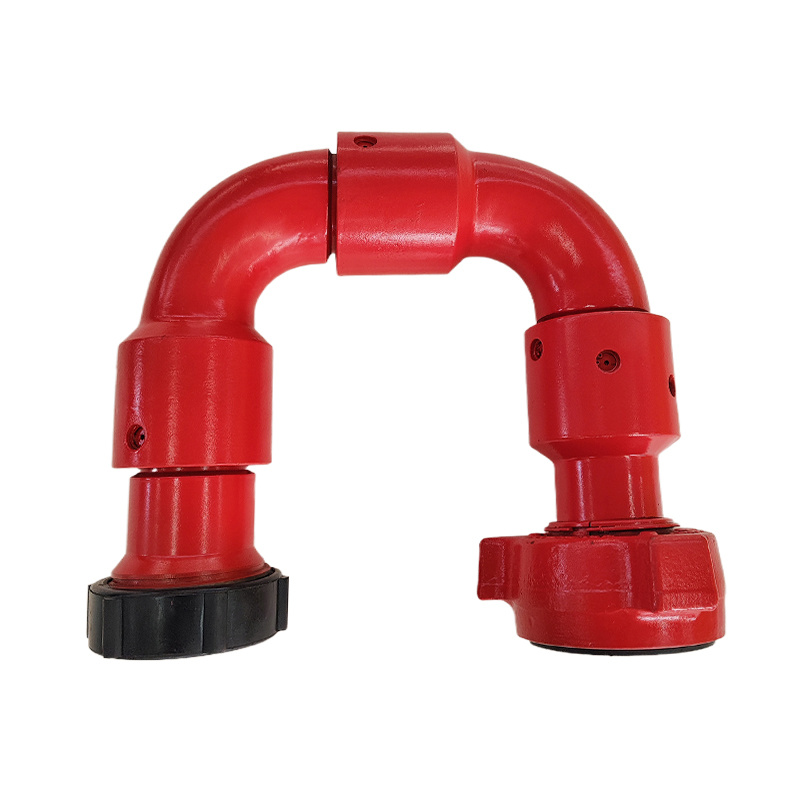

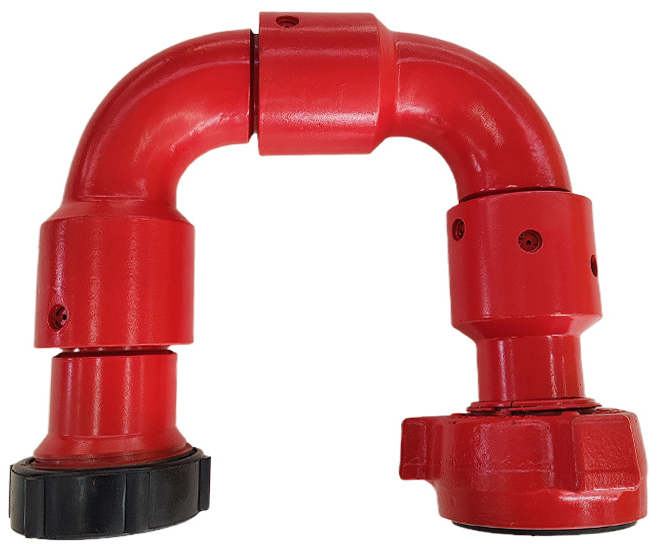

Long radius swivel joints /Elbow

Long radius swivel joints are commonly used pipeline fittings in industries such as oil and natural gas. They are used to change the direction of pipelines and are applied in scenarios where the pipeline requires a certain active space. The two ends are connected by union, and can also be connected with LP internal thread.

Description
Inquiry

Specification

Working Pressure：5000PSI ～ 20000PSI

Nominal Diameter：1″～ 4″

Working Temperature：-29℃～ +121℃ (PU 级 )

Application Condition：Standard or H2S

Manufacturing Standards：API 16C & NACE MR 0175

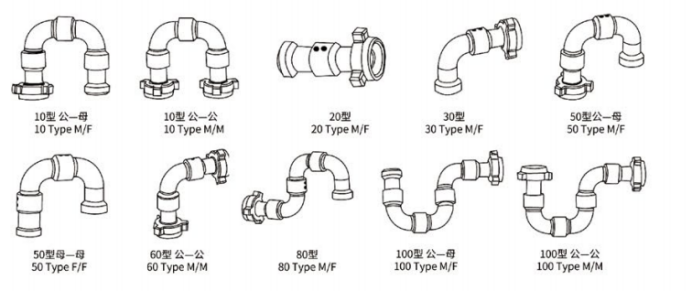

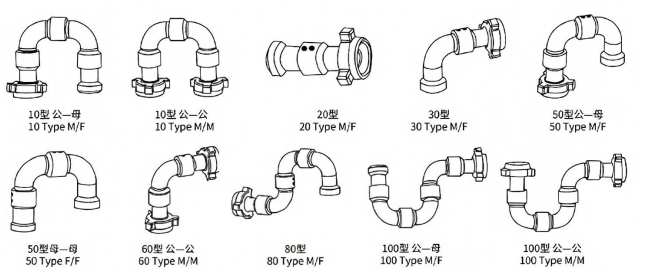

Specifications	End Connection Type (Thread)	Rated Working Pressure PSI	Style
Specifications	End Connection Type (Thread)	Rated Working Pressure PSI	Type 10	Type 20	Type 30	Type 40	Type 50	Type 60	Type 70	Type 80	Type 100
1"	M×M F×M FxF	5000PSI 600OPSI 10000PSI 15000PSI 20000PSI	√	√	√	√	√	√	√	√	√
11/2”			√	√	√	√	√	√	√	√	√
2"			√	√	√	√	√	√	√	√	√
21/2"			√	√	√	√	√	√	√	√	√
3”			√	√	√	√	√	√	√	√	√
