Hose Loops /Annular Manifold

Description
Inquiry

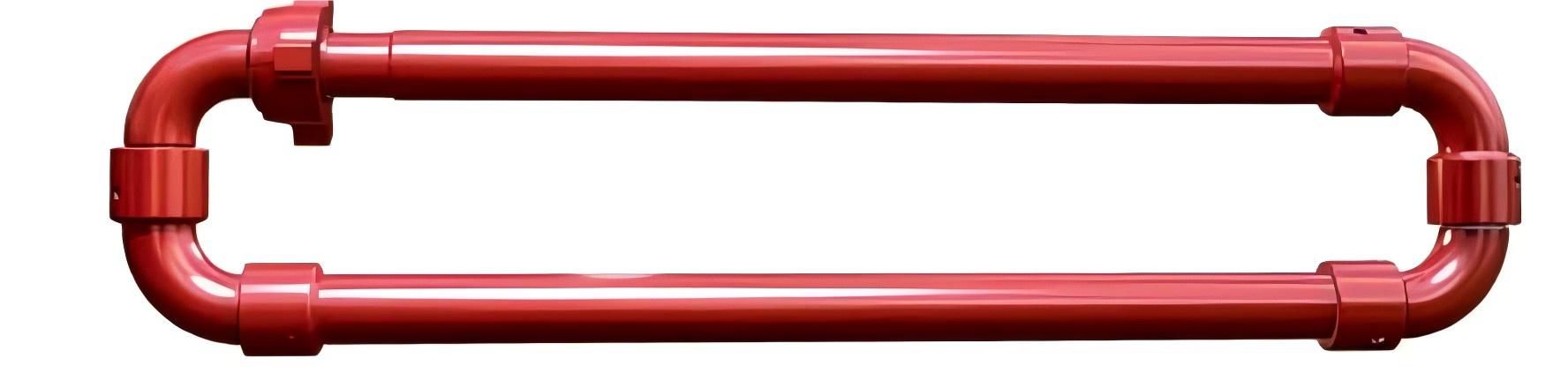

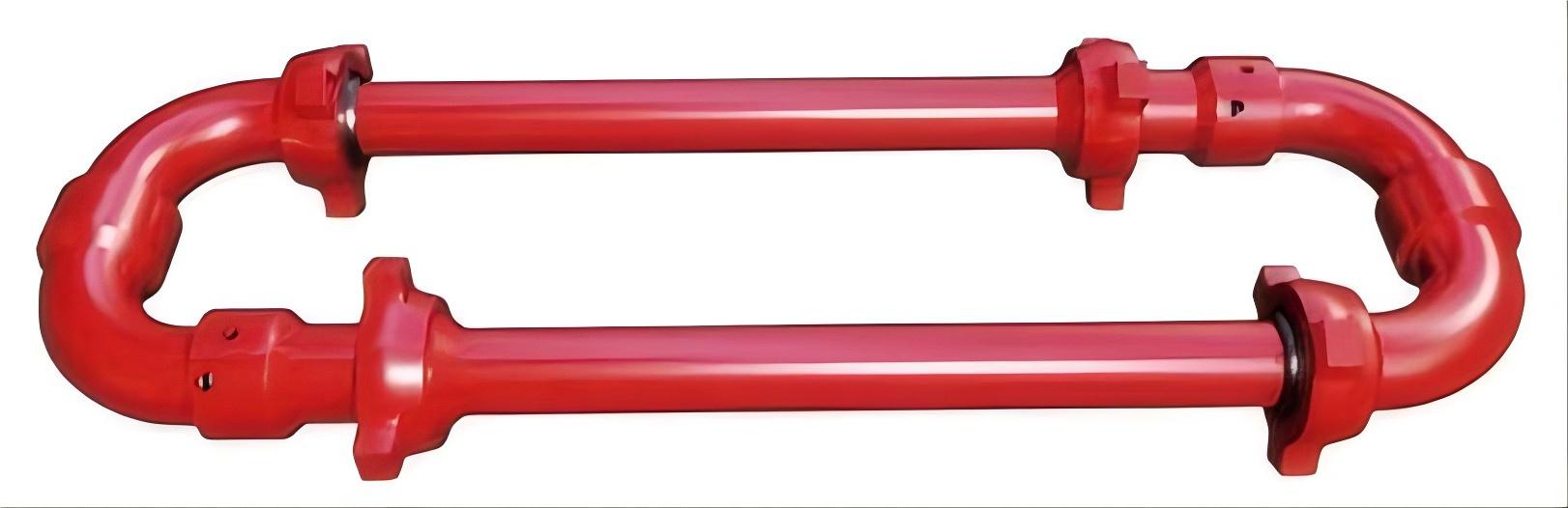

Annular manifold is suitable for oil field of high voltage discharge pipeline, oil pipeline, well test line, the cementing slurry pipeline and other working condition of high pressure conveying fluid flow. It is composed of elbow, straight pipe assembly,

easy to composite, convenient transportation and storage. Have flexibility, impact resistance, resistance to vibration, the characteristics of the large flow. Annular manifold mainly has three forms: short radius annular manifold, long radius annular manifold,Flexible loop manifold. Specifications 2″ , 3″ , the work pressure of 5000 PSI ～ 20000 PSI. The activity type elbow general configuration of 50 elbow, elbow also optional 10 type activities.

Specification

Specifications	End Connection Type (thread)	Rated Working Pressure PSI
2"	M×F Type 10/Type 50	5000PSI 10000PSI 15000PSI 20000PSI
3"	M×F Type 10/Type 50	5000PSI 10000PSI 15000PSI 20000PSI
